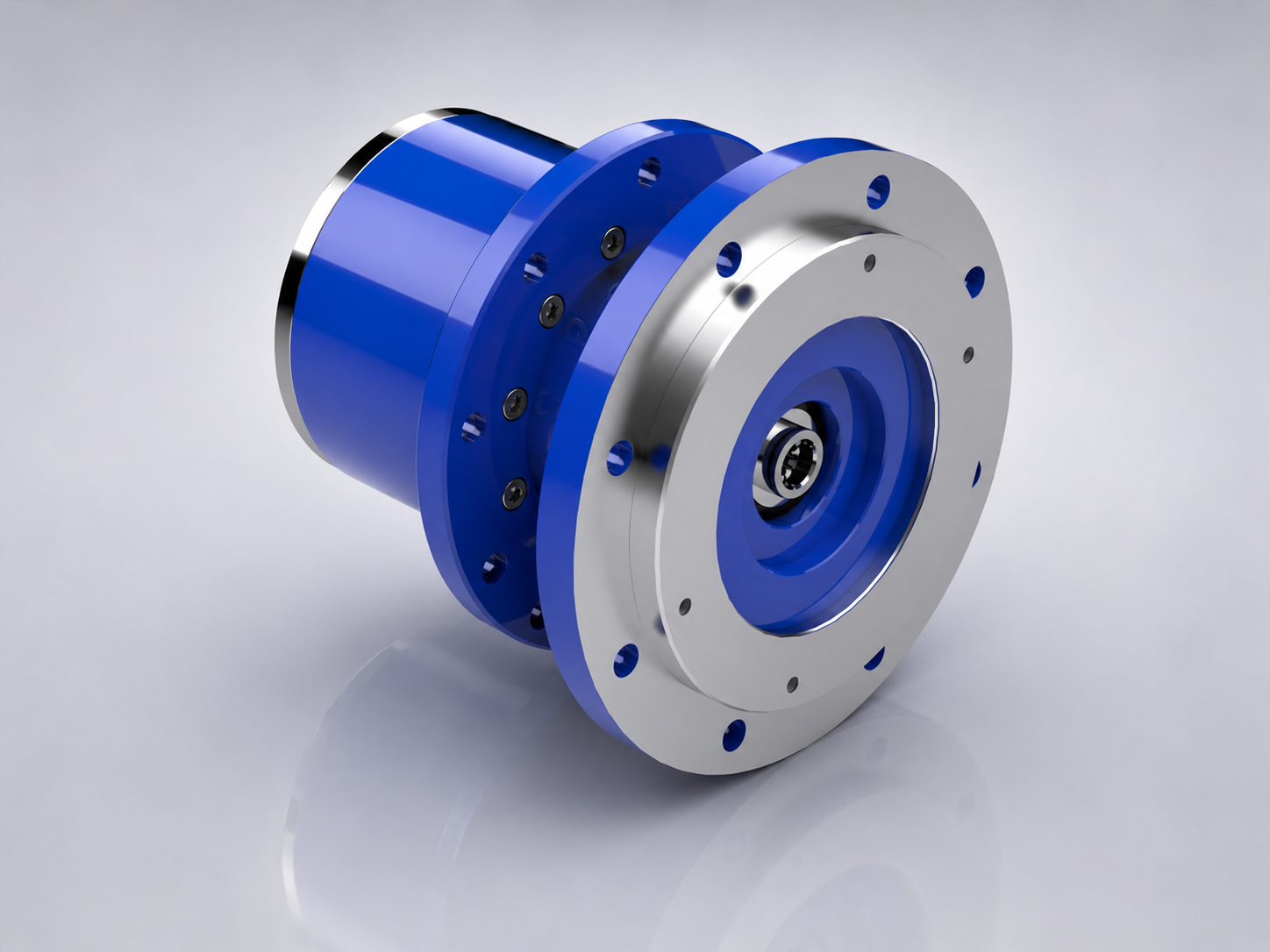

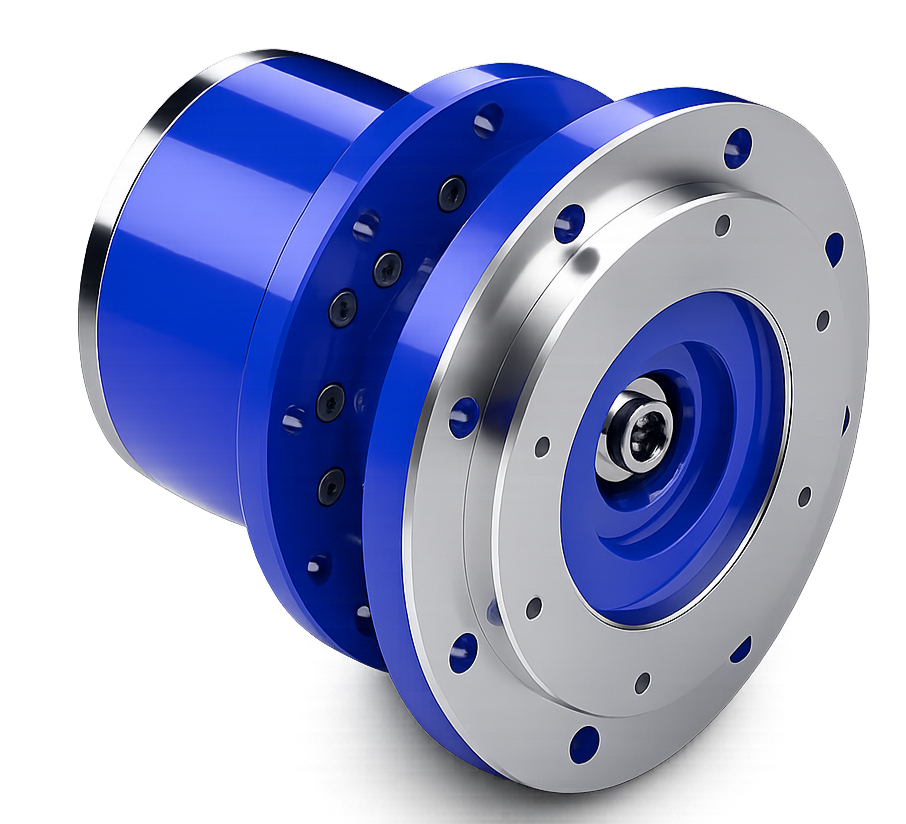

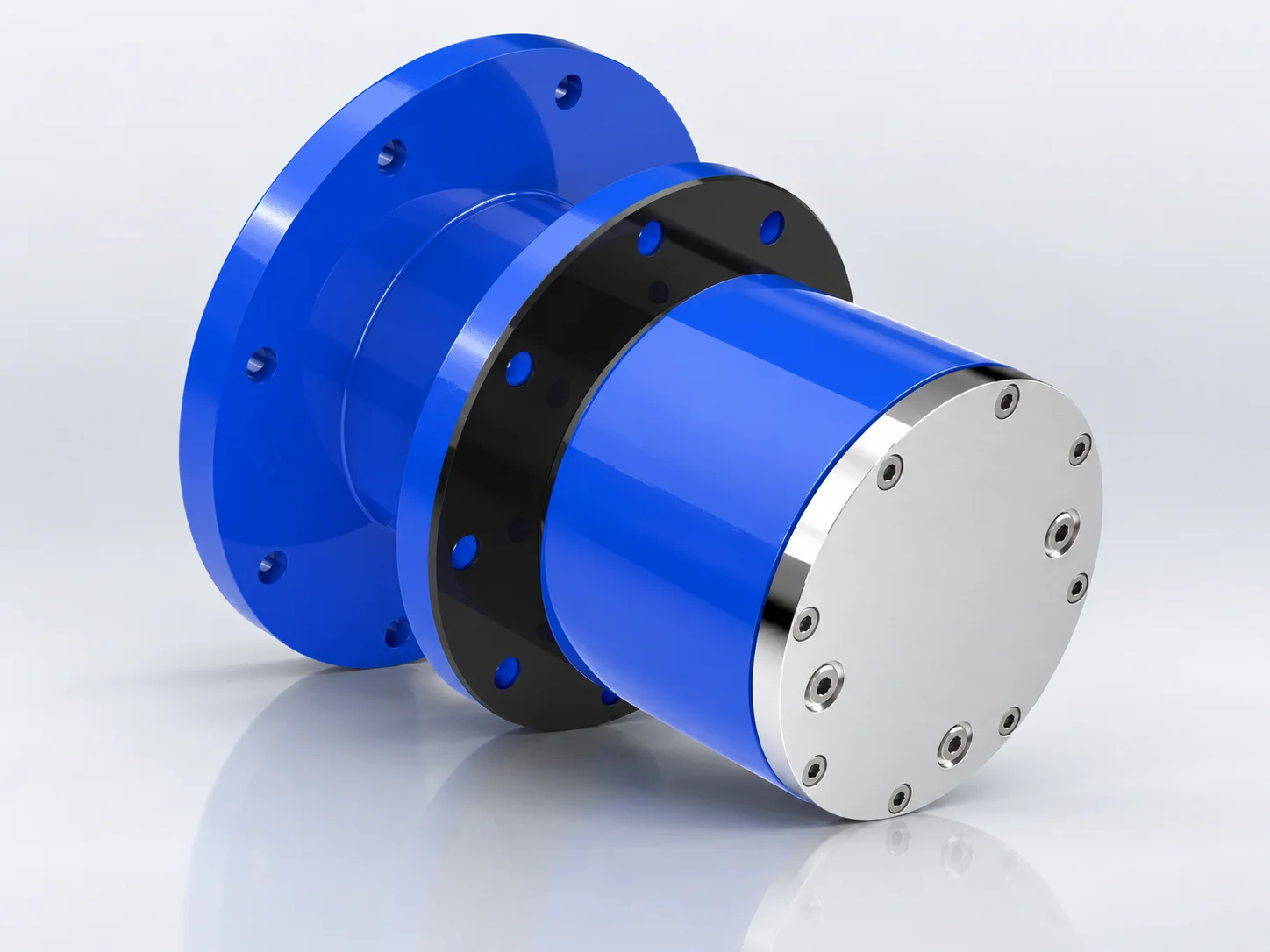

Our company provides its customers a wide and explicit range of track drives that is very hard to find these days.
We understand the needs of our customers, which is why we are inclined towards offering them track drives with unparalleled performance.
They find extensive use in excavators and agricultural equipment, owing to their durability and versatility.
They are further used in crawler applications for any mobile equipments such as cranes, drilling rigs, etc.
Let us have a look at some of the product specifications and features of theseTrack Drive:
It we caters to the needs of our clients by manufacturing, exporting and supplying the various equipment’s such as Planetary Gearboxes, Hydraulic Winch, Screw Jack, Bevel Drives, Worm Drives,and etc.
| Mounting | Body |
| Input | Hollow to suite Hydraulic Motor |
| Orientation | B3 (Horizontal) |
| Efficiency | 96% per stage |
| Ambient Temp. | 40 Deg. C |
| Allowable Temperature Rise | 45 Deg. C above ambient temp. |
| Ratio Range | 3.75 to 140 |
| Output Torque Range | From 150 Kg.m To 550 Kg.m |
| Input Power | Cartridge Axial Piston Hydraulic Motor, Flanged Axial Piston Hydraulic Motor, Hydraulic Orbit Motor |
| Max. Input Speed | As per motor |
| Paint Shade |
STD : STD : RAL Blue + Black, Black SPL : Special color can be provided against specific customer requirement |
| Method of Cooling | STD : Splash Type Lubrication air cooled |
| Lubrication |
ISO VG 220/320 Synthetic Base Oil STD : Gearbox supplied without oil SPL : Gearbox supplied with oil against specific customer requirement |
| Standard Accessories | Can be provided with splined Bolt for Sprocket Mounting, Supplied with Hydraulic released Parking Brakes |
| Applicable Standards | AGAM , ISO, IS |
| Advantage | Very Rugged design for heavy duty application |
| Disadvantage | Nil |
| Application | Crawller, Pocklen, Road Construction Machinery |
